DG1000
The DG1000 series function/arbitrary waveform generators are designed using Direct Digital Frequency Synthesis (DDS) technology, capable of generating accurate, stable, and low-distortion output signals. Instruments in this series feature dual-channel output, can output 5 standard waveforms, and have 48 built-in arbitrary waveforms, meeting the requirements of most application scenarios in basic testing.
Explore the DG1000 Series Function/Arbitrary Waveform Generators

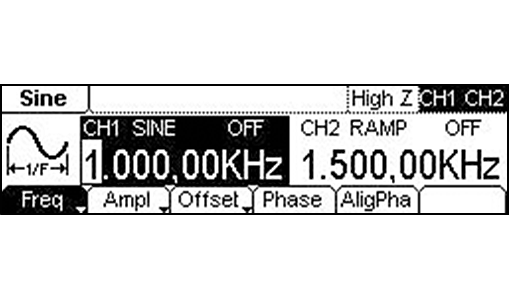

Dual-channel synchronous output
Both channels can output standard waveforms and arbitrary waveforms, and the parameters and output status of the two channels can be displayed on the screen simultaneously.

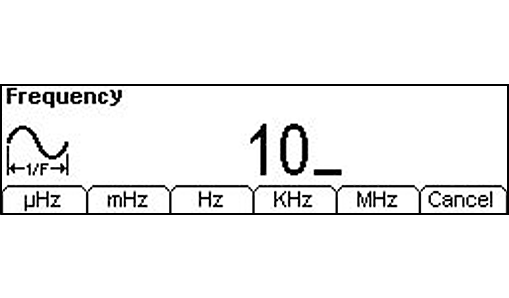

1 μHz frequency resolution
The minimum frequency resolution reaches 1uHz. The frequency accuracy is ±100ppm within 1 year.

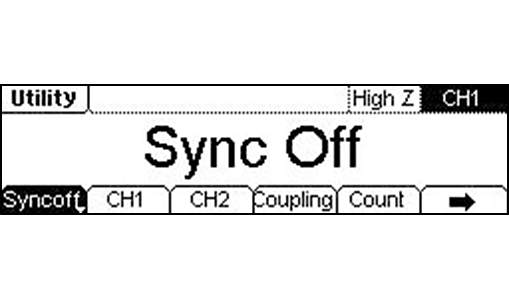

Channel coupling/replication function
The dual channels can perform frequency or phase coupling and output signals with a certain frequency or phase difference. Channel copying can copy the waveform parameters of one channel to another channel.

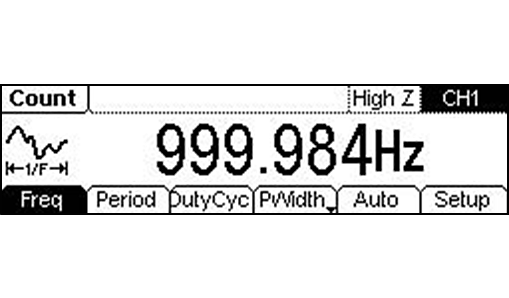

200MHz Hardware Frequency Meter
The frequency resolution reaches 6 digits/second. It can measure signals with a frequency range of 100mHz to 200MHz and provide the measured values of the signal's frequency, period, duty cycle, and pulse width.

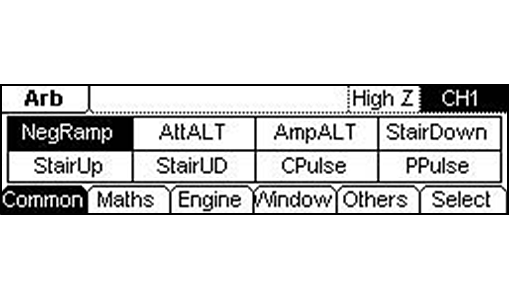

Built-in 48 arbitrary waveforms
It has built - in various common waveforms used in teaching and circuit debugging, and classifies them into several major categories such as common, mathematical, engineering, window functions, and others. There are a total of 48 selectable waveforms.
|
Model
|
Description
|
Price
|
|---|
|
Name
|
Version
|
Release time
|
|---|---|---|
DG1000 DataSheet
|
V1.0
|
2019-08-29
|
|
Name
|
Version
|
Release time
|
|---|---|---|
|
DG1000 UserGuide
|
UGB06140-1210
|
2019-08-29
|
|
Name
|
Version
|
Release time
|
|---|---|---|
|
DG1000 QuickGuide
|
QGB06106-1110
|
2021-11-18
|
|
Name
|
Version
|
Release time
|
|---|---|---|
|
DG1000 ProgrammingGuide
|
PGB06109-1110
|
2019-08-29
|
|
Name
|
Version
|
Release time
|
|---|---|---|
DG1000 Firmware
|
00.03.01.00.00
|
2019-08-29
|
|
Name
|
Version
|
Release time
|
|---|---|---|
Ultra Sigma(HelpDocument)
|
V1.0
|
2019-08-22
|
|
UltraSigma
|
00.01.06.01
|
2019-08-22
|
|
Ultra Wave
|
V1.0
|
2019-08-29
|
