DG1000Z
DG1000Z series function / arbitrary waveform generator is a multi-functional signal generator which integrates function generator, arbitrary waveform generator, noise generator, pulse generator, harmonic generator, analog / digital modulator, frequency meter and other functions.
Explore the DG1000Z Series Function/Arbitrary Waveform Generator
SiFi Technology

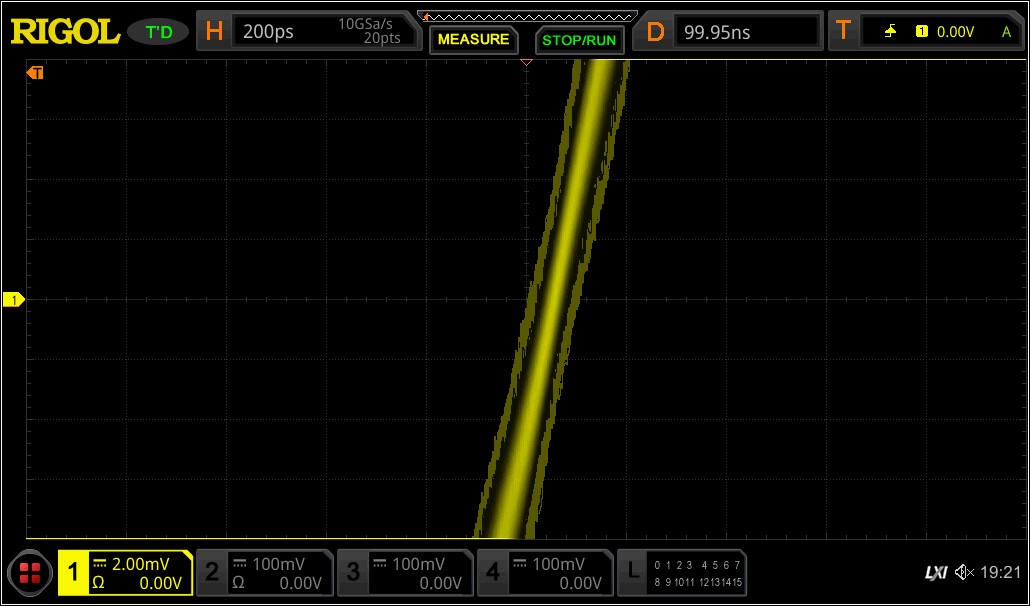

RIGOL's innovative Sifi technology can generate any waveform point by point, undistorted restore signal, accurate and adjustable sampling rate, reduce the signal jitter generated by traditional DDS signal source, and the jitter can be as low as 200ps.

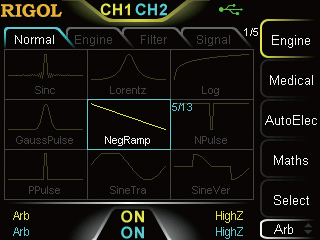

Built-in 160 arbitrary waves
As we all know, RIGOL's waveform generator includes many popular custom waveform types, which can limit waveform creation to any real application. The dg1000z continues this trend by including more than 160 different signal shapes, all of which are accessible from the front panel selection menu.

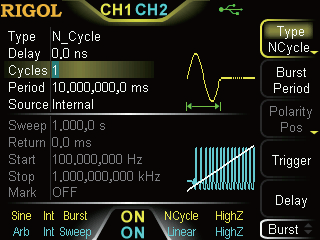

Sweep function & burst mode
It supports scanning output from low frequency to high frequency or from high frequency to low frequency. The scanning type includes linear, logarithmic and step. It can set the "mark" frequency to meet the needs of more amplitude frequency test applications. Burst mode function provides N-cycle, infinite and gating three types of pulse strings.
Multiple analog & digital modulation
Modulation types include am, FM, PM, ask, FSK, PSK and PWM, and support internal and external modulation sources to meet the needs of more teaching or communication system testing.

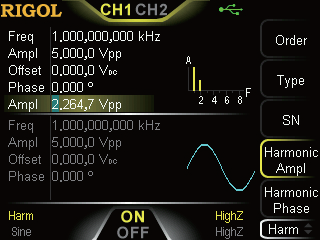

Harmonic generator
Built in 8-th harmonic generator function, output the harmonic with specified times, amplitude and phase, which is usually used in the test of harmonic detection equipment or harmonic filter equipment.

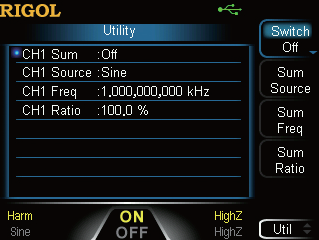

Waveform Overlay & Channel Tracking
It can stack the specified frequency and percentage amplitude waveform on the basic wave for output; when the channel tracking function is turned on, all parameters of the dual channel can be updated according to the user's configuration at the same time

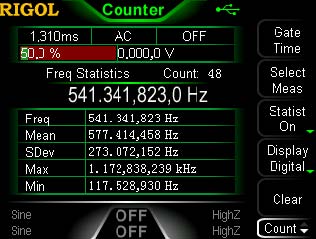

Built-in 7-bit frequency meter
It provides 7-bit frequency meter measurement function, which can measure the frequency, period, duty cycle, positive pulse width, negative pulse width and other parameters of external input signal, and supports the statistics of measurement results. The frequency meter can work simultaneously with the dual channel output.
