DM3068
DM3068 series digital multimeter has the highest accuracy of 6.5 bits. It is designed for the test requirements of high accuracy, multi-function and automatic measurement, and integrates the functions of automatic measurement, multiple mathematical transformations and arbitrary sensor measurement. Compatible with the mainstream multimeter command set, it can meet the needs of research and development, quality verification, automatic production, education and training and other fields.
Explore the DM3068 series digital multimeters

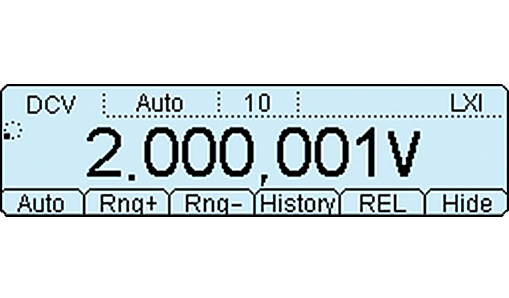

True 6 ½-digit reading
It has ± 2,200,000 counts, which is much larger than the ± 1,200,000 of similar products. Under the same reading resolution, it has a larger measurement range than similar products.

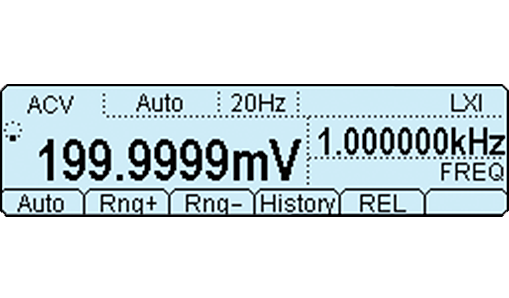

Double Screen Display
When measuring the voltage or current of the AC signal, the frequency can also be measured. At this time, the voltage or current is displayed on the main display screen and the frequency is displayed on the secondary display screen.

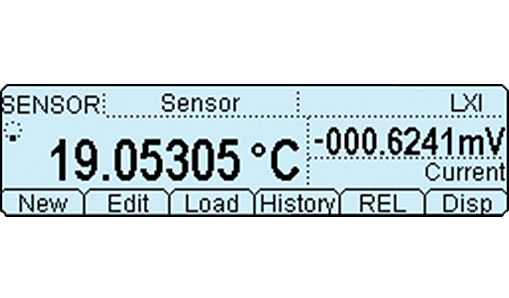

Support Any Sensor Measurement
The measured physical quantities (pressure, flow rate, temperature, etc.) can be converted into voltage, current, resistance and other easily measured physical quantities for measurement, and the measured value and corresponding value can be displayed on the screen at the same time.

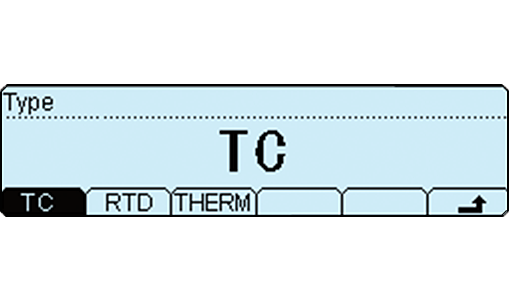

Supports a Variety of Temperature Sensors
Directly use TC (thermocouple), RTD (thermistor) and therm (thermistor) temperature sensors to measure temperature The temperature sensor used meets the international temperature standard ITS-90.

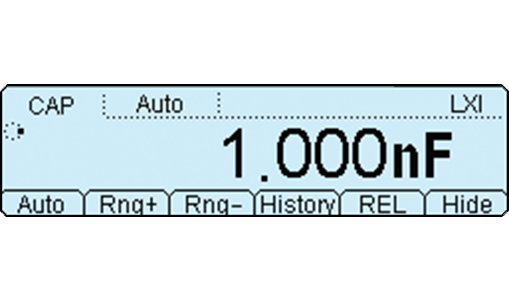

Capacitance Test Function
It can be used for capacitance measurement with a maximum display resolution of 1pf (2NF range).

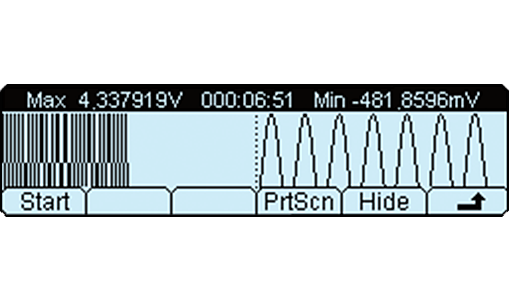

Trend Chart Display
By drawing the trend chart of real-time measurement data, users can observe the change of measurement data without other auxiliary means.
Histogram Display
Display the distribution of measured data in real time, including AVG, SDEV and histogram of measured data, and change constantly in the measurement process.

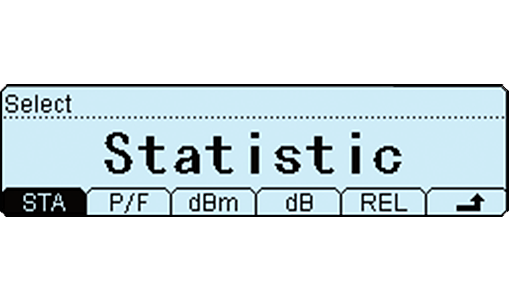

Statistical Analysis Function
Perform mathematical statistics on the current measurement data, giving the minimum, maximum, average, and mean square error of the measured data.
|
Model
|
Description
|
Price
|
|---|
|
Name
|
Version
|
Release time
|
|---|---|---|
DM3068 UserGuide
|
V1.0
|
2024-02-19
|
|
Name
|
Version
|
Release time
|
|---|---|---|
|
DM3068 DataSheet
|
V1.0
|
2024-02-19
|
|
Name
|
Version
|
Release time
|
|---|---|---|
|
DM3068 QuickGuide
|
V1.0
|
2021-11-24
|
|
Name
|
Version
|
Release time
|
|---|---|---|
DM3068 ProgrammingGuide
|
V1.0
|
2021-10-27
|
|
Name
|
Version
|
Release time
|
|---|---|---|
|
DM3068 Firmware
|
v01.01.00.01.11.00.00
|
2023-01-13
|
|
Name
|
Version
|
Release time
|
|---|---|---|
Ultra Sigma (HelpDocument)
|
v1.0
|
2021-10-27
|
