DSG3000B
The DSG3000B Series offers continuous wave high power carriers up to 13.6 GHz, standard AM/FM/ØM analog modulation up to 3.6 GHz, and I/Q modulation and I/Q baseband output up to 6.5 GHz on the models ending in "IQ". It is an ideal tool in various fields such as communication, computers, instrumentation, R&D, education, production and maintenance.
Functions and features
High Power Signal Generation Capability

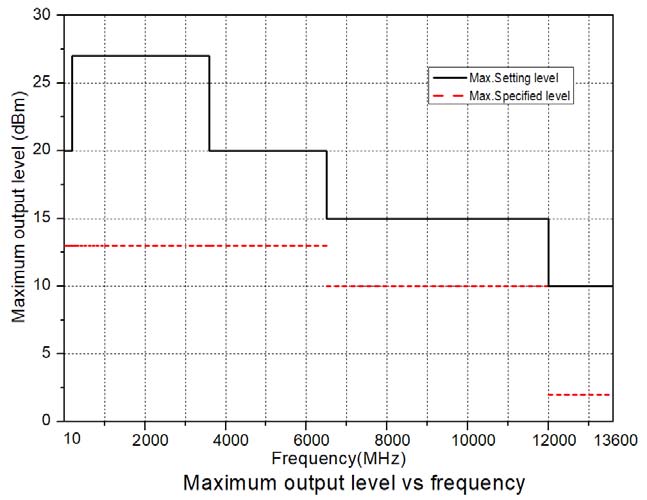

The maximum output amplitude is +27dBm，which meets the non-linearity test of the amplifier.
Phase Noise Metric
High signal purity, phase noise typical value <-116dBc/Hz@20kHz ; better high-stability clock reference can get better near-phase noise index
Support pulse modulation; on/off ratio up to 70 dB
Support pulse modulation; on/off ratio up to 70 dB
Internal and External IQ Modulation
Users can choose both internal and external IQ modulation modes, internal I+Q modulation bandwidth up to 60MHz, EVM <0.7%, external I+Q modulation bandwidth 240MHz, EVM <2% (typical), and Ultra IQ Station for convenience Generated vector signal waveform
Multiple Modulation Methods
Standard amplitude modulation, frequency modulation, equal modulation analog modulation and pulse modulation and pulse generator, optional user-defined pulse sequence, and I / Q modulation and IQ baseband generator can generate QAM, ASK, PSK, FSK, Various commonly used modulation signals such as MSK; all modulations support internal and external modulation sources
