DSG800
The DSG800A delivers outstanding performance in the same class of economical RF signal sources with full frequency and power scanning capabilities, as well as AM/FM/ØM analog modulation, powerful pulse modulation and newly added IQ modulation. Compared to similar products, the DSG800A has the smallest footprint, light weight and superior portability, making it an excellent choice for educational laboratories, industrial production lines, development and research applications.
Functions and Features
Complete AM/FM/ØM Analog Modulation
DSG800 provides a variety of analog modulation functions such as AM/FM/ØM, which is suitable for signal simulation requirements in various applications such as FM radio and wireless microphone.
Pulse Modulation

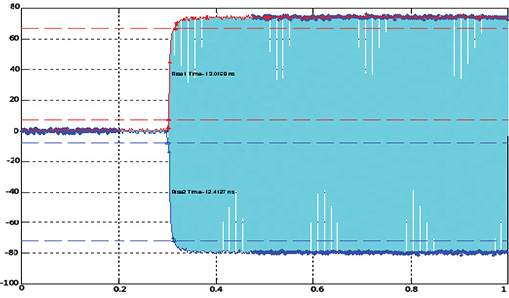

It produces high quality pulse modulated signals with rise/fall times typically less than 10 ns and on/off ratios greater than 70 dB. Support for internal and external modulation. Built-in pulse generator can generate pulse sequence and output to the outside as a separate pulse generator
Low Phase Noise

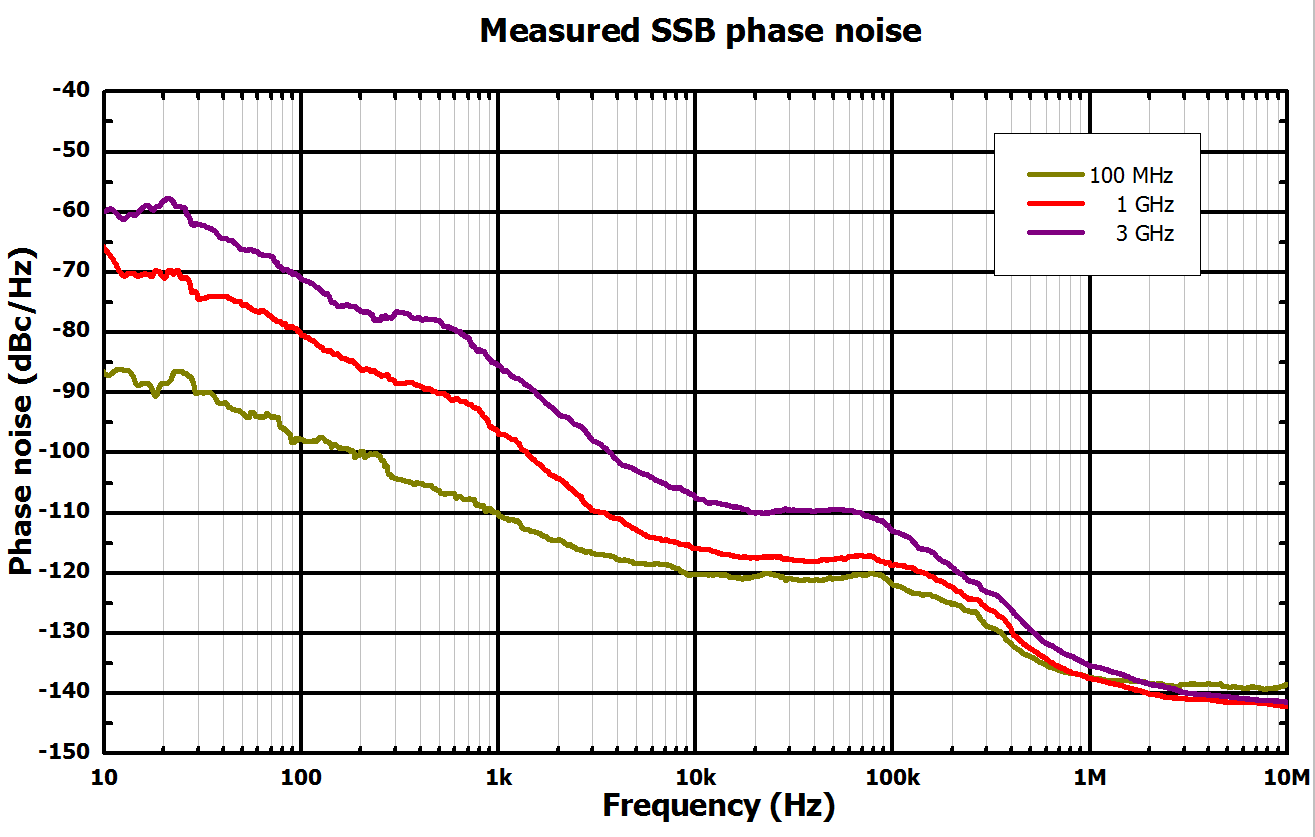

High signal purity, phase noise typical value <-112dBc/Hz@20kHz; better high-stability clock reference with better near-phase noise capability.

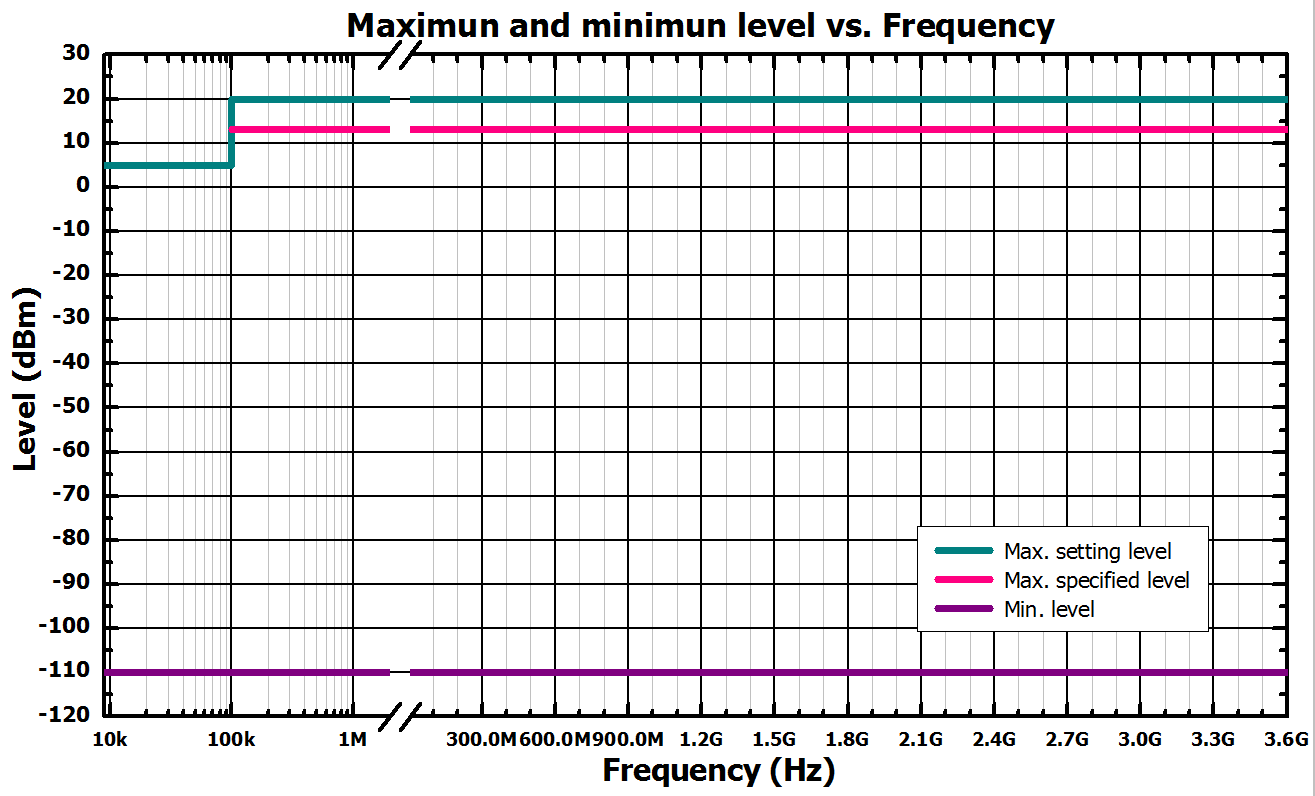

High Amplitude Accuracy
The output amplitude accuracy is typically 0.5 dB, providing users with accurate excitation signals
Wide Range of High Power Output
The maximum output amplitude is +13dBm (nominal value), and can be set to +20dBm to meet the nonlinearity test of the amplifier.
Amplitude Stability

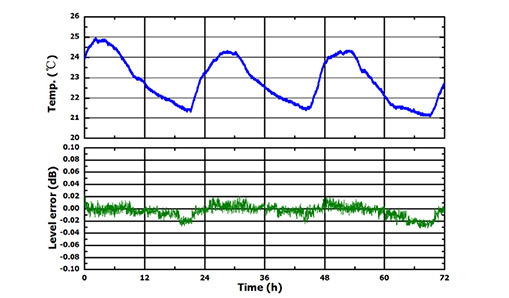

Reliable repeatability provides engineers with sufficient test confidence that the 72-hour output amplitude variation is less than 0.02dB
